Analysis by: Karen Ivy Titiwa
 Modified by: Bren Matthew Ebriega

ALIASES:

a variant of Win32/Kryptik.HEXY trojan(NOD32); Trojan:Win32/Gozi.MX!MTB(MICROSOFT)

 PLATFORM:

Windows

 OVERALL RISK RATING:
 DAMAGE POTENTIAL:
 DISTRIBUTION POTENTIAL:
 REPORTED INFECTION:
 INFORMATION EXPOSURE:

  • Threat Type: Ransomware

  • Destructiveness: No

  • Encrypted: Yes

  • In the wild: Yes

  OVERVIEW

Infection Channel: Downloaded from the Internet

This Ransomware arrives on a system as a file dropped by other malware or as a file downloaded unknowingly by users when visiting malicious sites.

It drops files as ransom note. It avoids encrypting files with the following file extensions.

  TECHNICAL DETAILS

File Size: 218,408 bytes
File Type: EXE
Memory Resident: Yes
Initial Samples Received Date: 18 Jul 2020
Payload: Displays message/message boxes, Encrypts files, Terminates processes

Arrival Details

This Ransomware arrives on a system as a file dropped by other malware or as a file downloaded unknowingly by users when visiting malicious sites.

Installation

This Ransomware drops the following files:

  • %User Temp%\{random characters}.bmp → Used as wallpaper

(Note: %User Temp% is the current user's Temp folder, which is usually C:\Documents and Settings\{user name}\Local Settings\Temp on Windows 2000(32-bit), XP, and Server 2003(32-bit), or C:\Users\{user name}\AppData\Local\Temp on Windows Vista, 7, 8, 8.1, 2008(64-bit), 2012(64-bit) and 10(64-bit).)

It adds the following processes:

  • powershell -e {base-64 encoded command} → Deletes Shadow Copies

It adds the following mutexes to ensure that only one of its copies runs at any one time:

  • Global\B6CC837D-86BE-A32B-F1A9-2E0B99BA279D

Other System Modifications

This Ransomware adds the following registry entries:

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
k8q = {hex values}

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
TiuD = {hex values}

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
TMjCE = {hex values}

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
bfWmiW = {hex values}

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
RFY8wJD = .{appended extension}

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant
Ul4OFJ5S = {hex values}

It changes the desktop wallpaper by modifying the following registry entries:

HKEY_CURRENT_USER\Control Panel\desktop
Wallpaper = %User Temp%\{random characters}.bmp

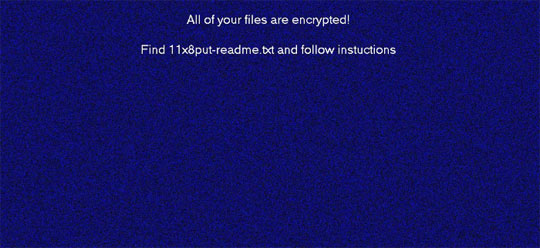

It sets the system's desktop wallpaper to the following image:

Process Termination

This Ransomware terminates the following services if found on the affected system:

  • AcronisAgent
  • AcrSch2Svc
  • ARSM
  • backup
  • BackupExecAgentAccelerator
  • BackupExecAgentBrowser
  • BackupExecDiveciMediaService
  • BackupExecJobEngine
  • BackupExecManagementService
  • BackupExecRPCService
  • BackupExecVSSProvider
  • bedbg
  • CAARCUpdateSvc
  • CASAD2DWebSvc
  • memtas
  • mepocs
  • MSExchange
  • MSExchange$
  • MSSQL
  • MSSQL$
  • MVArmor
  • MVarmor64
  • PDVFSService
  • sophos
  • sql
  • stc_raw_agent
  • svc$
  • veeam
  • VeeamDeploymentService
  • VeeamNFSSvc
  • VeeamTransportSvc
  • VSNAPVSS
  • vss
  • WSBExchange

It terminates the following processes if found running in the affected system's memory:

  • agntsvc
  • bedbh
  • benetns
  • bengien
  • beserver
  • CagService
  • dbeng50
  • dbsnmp
  • DellSystemDetect
  • encsvc
  • EnterpriseClient
  • excel
  • firefox
  • infopath
  • isqlplussvc
  • msaccess
  • mspub
  • mydesktopqos
  • mydesktopservice
  • ocautoupds
  • ocomm
  • ocssd
  • onenote
  • oracle
  • outlook
  • powerpnt
  • pvlsvr
  • raw_agent_svc
  • sqbcoreservice
  • sql
  • steam
  • synctime
  • tbirdconfig
  • thebat
  • thunderbird
  • VeeamDeploymentSvc
  • VeeamNFSSvc
  • VeeamTransportSvc
  • visio
  • vsnapvss
  • vxmon
  • winword
  • wordpad
  • xfssvccon

Other Details

This Ransomware adds the following registry keys:

HKEY_LOCAL_MACHINE\Software\Facebook_Assistant

It does the following:

  • It checks for the system’s computer layout and terminates if it is any of the following:
    • Russian
    • Ukrainian
    • Belarusian
    • Tajik
    • Armenian
    • Azeri-Latin
    • Georgian
    • Kazakh
    • Kyrgyz-Cyrillic
    • Slovenian
    • Uzbek-Latin
    • Tatar
    • Romanian-Moldova
    • Russian-Moldova
    • Azeri-Cyrillic
    • Uzbek-Cyrillic
    • Syriac
    • Arabic-Syria
  • It searches for files to encrypt in remote drives, fixed drives, removable drives, and network resources.
  • It wipes the contents of the following folder(s):
    • back
    • bckp
    • backups
    • backup
    • archive
  • It checks if the operating system is Windows Vista or above. If it is or above, it will then check if the current process has administrator privileges. If it doesn't, the malware will then run another instance of itself using the runas command to give the copy administrator privileges. It will then terminate itself.
  • It checks if its privilege level is on SYSTEM level. If it is, it will impersonate the user that ran the first explorer.exe it has found.

Ransomware Routine

This Ransomware avoids encrypting files with the following strings in their file name:

  • bootfont.bin
  • ntldr
  • ntuser.ini
  • ntuser.dat.log
  • bootsect.bak
  • autorun.inf
  • boot.ini
  • desktop.ini
  • ntuser.dat
  • thumbs.db
  • iconcache.db

It avoids encrypting files found in the following folders:

  • msocache
  • intel
  • system volume information
  • application data
  • tor browser
  • program files (x86)
  • programdata
  • program files
  • google
  • perflogs
  • windows.old
  • $windows.~bt
  • boot
  • mozilla
  • $windows.~ws
  • $recycle.bin
  • appdata

It appends the following extension to the file name of the encrypted files:

  • .{random characters}

It drops the following file(s) as ransom note:

  • {Encrypted Directory}\{appended extension}-readme.txt

It avoids encrypting files with the following file extensions:

  • .386
  • .adv
  • .ani
  • .bat
  • .bin
  • .cab
  • .cmd
  • .com
  • .cpl
  • .cur
  • .deskthemepack
  • .diagcab
  • .diagcfg
  • .diagpkg
  • .dll
  • .drv
  • .exe
  • .hlp
  • .hta
  • .icl
  • .icns
  • .ico
  • .ics
  • .idx
  • .key
  • .ldf
  • .lnk
  • .lock
  • .mod
  • .mpa
  • .msc
  • .msi
  • .msp
  • .msstyles
  • .msu
  • .nls
  • .nomedia
  • .ocx
  • .prf
  • .ps1
  • .rom
  • .rtp
  • .scr
  • .shs
  • .spl
  • .sys
  • .theme
  • .themepack
  • .wpx

  SOLUTION

Minimum Scan Engine: 9.850
FIRST VSAPI PATTERN FILE: 16.110.08
FIRST VSAPI PATTERN DATE: 18 Jul 2020
VSAPI OPR PATTERN File: 16.111.00
VSAPI OPR PATTERN Date: 19 Jul 2020

Step 1

Trend Micro Predictive Machine Learning detects and blocks malware at the first sign of its existence, before it executes on your system. When enabled, your Trend Micro product detects this malware under the following machine learning name:


    • Troj.Win32.TRX.XXPE50FFF036

Step 2

Before doing any scans, Windows 7, Windows 8, Windows 8.1, and Windows 10 users must disable System Restore to allow full scanning of their computers.

Step 3

Note that not all files, folders, and registry keys and entries are installed on your computer during this malware's/spyware's/grayware's execution. This may be due to incomplete installation or other operating system conditions. If you do not find the same files/folders/registry information, please proceed to the next step.

Step 4

Restart in Safe Mode

[ Learn More ]

Step 5

Delete this registry key

[ Learn More ]

Important: Editing the Windows Registry incorrectly can lead to irreversible system malfunction. Please do this step only if you know how or you can ask assistance from your system administrator. Else, check this Microsoft article first before modifying your computer's registry.

  • HKEY_LOCAL_MACHINE\Software\Facebook_Assistant

Step 6

Search and delete this file

[ Learn More ]
There may be some files that are hidden. Please make sure you check the Search Hidden Files and Folders checkbox in the "More advanced options" option to include all hidden files and folders in the search result.
  • {Encrypted Directory}\{appended extension}-readme.txt

Step 7

Reset your Desktop properties

[ Learn More ]

Step 8

Restart in normal mode and scan your computer with your Trend Micro product for files detected as Ransom.Win32.SODINOKIBI.AUWUJDEK. If the detected files have already been cleaned, deleted, or quarantined by your Trend Micro product, no further step is required. You may opt to simply delete the quarantined files. Please check this Knowledge Base page for more information.

Step 9

Restore encrypted files from backup.
