Analysis by: Alyssa Christelle Ramos

ALIASES:

Win32/Filecoder.WastedLocker.A trojan(NOD32)

 PLATFORM:

Windows

 OVERALL RISK RATING:
 DAMAGE POTENTIAL:
 DISTRIBUTION POTENTIAL:
 REPORTED INFECTION:
 INFORMATION EXPOSURE:

  • Threat Type: Ransomware

  • Destructiveness: No

  • Encrypted: Yes

  • In the wild: Yes

  OVERVIEW

Infection Channel: Downloaded from the Internet, Dropped by other malware

This Ransomware arrives on a system as a file dropped by other malware or as a file downloaded unknowingly by users when visiting malicious sites.

It deletes registry entries, causing some applications and programs to not function properly.

It drops files as ransom note. It avoids encrypting files with the following file extensions.

  TECHNICAL DETAILS

File Size: 1,252,752 bytes
File Type: EXE
Memory Resident: No
Initial Samples Received Date: 24 Jul 2020
Payload: Deletes files, Displays message/message boxes, Encrypts files

Arrival Details

This Ransomware arrives on a system as a file dropped by other malware or as a file downloaded unknowingly by users when visiting malicious sites.

Installation

This Ransomware drops the following files:

  • %Application Data%\{Generated Name} → Random Dll or Exe file from %System%
  • %Temp%\lck.log → Log File

(Note: %System% is the Windows system folder, where it usually is C:\Windows\System32 on all Windows operating system versions.. %Temp% is the Windows temporary folder, where it usually is C:\Windows\Temp on all Windows operating system versions.)

It drops the following copies of itself into the affected system:

  • %System%\{Generated Name}.exe
  • %Application Data%\{Generated Name}:bin → Alternate Data Stream containing a copy of itself

(Note: %System% is the Windows system folder, where it usually is C:\Windows\System32 on all Windows operating system versions.. %Application Data% is the current user's Application Data folder, which is usually C:\Documents and Settings\{user name}\Application Data on Windows 2000(32-bit), XP, and Server 2003(32-bit), or C:\Users\{user name}\AppData\Roaming on Windows Vista, 7, 8, 8.1, 2008(64-bit), 2012(64-bit) and 10(64-bit).)

It adds the following processes:

  • %Application Data%\{Generated Name}:bin -r
  • %System%\vssadmin.exe Delete Shadows /All /Quiet
  • %System%\takeown.exe /F %System%\{Generated Name}.exe
  • %System%\icacls.exe %System%\{Generated Name}.exe /reset
  • %System%\{Generated Name}.exe -s
  • %System%\cmd.exe /c choice /t 10 /d y & attrib -h "%System%\{Generated Name}.exe" & del "%System%\{Generated Name}.exe"
  • %System%\cmd.exe /c choice /t 10 /d y & attrib -h "{Malware Filepath}\{Malware Filename}.exe" & del "{Malware Filepath}\{Malware Filename}.exe"

(Note: %Application Data% is the current user's Application Data folder, which is usually C:\Documents and Settings\{user name}\Application Data on Windows 2000(32-bit), XP, and Server 2003(32-bit), or C:\Users\{user name}\AppData\Roaming on Windows Vista, 7, 8, 8.1, 2008(64-bit), 2012(64-bit) and 10(64-bit).. %System% is the Windows system folder, where it usually is C:\Windows\System32 on all Windows operating system versions.)

Other System Modifications

This Ransomware deletes the following files:

  • After Execution:
    • Copy of itself:
      • %System%\{Generated Name}.exe
    • Others:
      • %Application Data%\{Generated Name}
      • {Malware Filepath}\{Malware Filename}.exe

(Note: %Application Data% is the current user's Application Data folder, which is usually C:\Documents and Settings\{user name}\Application Data on Windows 2000(32-bit), XP, and Server 2003(32-bit), or C:\Users\{user name}\AppData\Roaming on Windows Vista, 7, 8, 8.1, 2008(64-bit), 2012(64-bit) and 10(64-bit).)

It modifies the following registry entries:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Internet Settings\
ZoneMap
UNCAsIntranet = 0

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Internet Settings\
ZoneMap
AutoDetect = 1

It deletes the following registry entries:

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Internet Settings\
ZoneMap
ProxyBypass = {User Preference}

HKEY_CURRENT_USER\Software\Microsoft\
Windows\CurrentVersion\Internet Settings\
ZoneMap
IntranetName = {User Preference}

Other Details

This Ransomware does the following:

  • It generates the filename {Generated Name} from a list created from registry keys stored in HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control.
  • It accepts the following arguments:
    • -r → Delete shadow copies. Then copy the ransomware binary file to %System% then Take ownership of file and reset Access Control List permissions. Then Create and run a service. It deletes the service after execution
      • Service Name: {Generated Name}
      • Description: {Generated Name}
      • Path: "%System%\{Generated Name}.exe -s"
    • -s → Execute the created service.
    • -p directory_path → Encrypt files in a specific directory along with the rest of the files in the drive.
    • -f directory_path → Encrypt files in a specific directory.
  • It encrypts the following type of drives:
    • Removable Drives
    • Fixed Drives
    • Remote(Network) Drives

(Note: %System% is the Windows system folder, where it usually is C:\Windows\System32 on all Windows operating system versions.)

Ransomware Routine

This Ransomware avoids encrypting files with the following strings in their file name:

  • \ntldr
  • \bootmgr
  • \grldr

It avoids encrypting files with the following strings in their file path:

  • C:\ProgramData\
  • C:\Windows\
  • C:\Users\{Username}\AppData\Local\Temp\
  • C:\Users\{Username}\AppData\Roaming\
  • C:\Recovery\
  • C:\Program Files\
  • C:\Program Files (x86)\
  • \bin\
  • \Boot\
  • \boot\
  • \dev\
  • \etc\
  • \lib\
  • \initdr\
  • \sbin\
  • \sys\
  • \vmlinuz\
  • \run\
  • \var\
  • \System Volume Information\
  • \$RECYCLE.BIN\
  • \WebCache\
  • \Caches\
  • \WindowsApps\
  • \AppData\
  • \ProgramData\
  • \Users\All Users\

It appends the following extension to the file name of the encrypted files:

  • .{Target Company Name}wasted

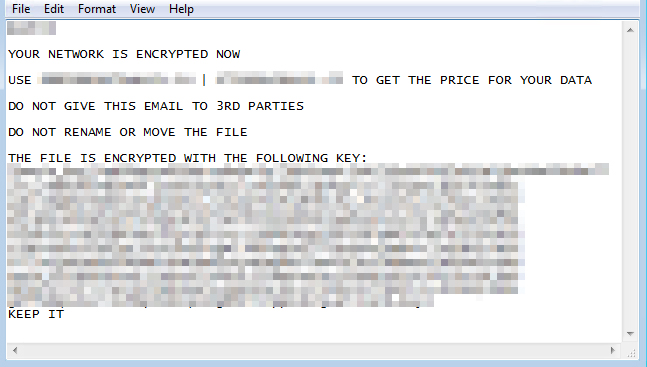

It drops the following file(s) as ransom note:

  • {Encrypted Directory}\{Encrypted FileName w/ extension}.{Target Company Name}wasted_info

It avoids encrypting files with the following file extensions:

  • .{Target Company Name}wasted_info
  • .{Target Company Name}wasted
  • .386
  • .ps1
  • .msu
  • .ani
  • .wpx
  • .hlp
  • .ocx
  • .com
  • .cpl
  • .adv
  • .cmd
  • .lnk
  • .drv
  • .sys
  • .icl
  • .nls
  • .cab
  • .bat
  • .theme
  • .bin
  • .key
  • .themepack
  • .msi
  • .icns
  • .ics
  • .idx
  • .hta
  • .scr
  • .msstyles
  • .diagcfg
  • .diagcab
  • .nomedia
  • .msc
  • .cur
  • .mod
  • .shs
  • .rtp
  • .rom
  • .msp
  • .ini
  • .dat
  • .sdi
  • .wim
  • .dll
  • .exe

  SOLUTION

Minimum Scan Engine: 9.850
FIRST VSAPI PATTERN FILE: 16.128.02
FIRST VSAPI PATTERN DATE: 27 Jul 2020
VSAPI OPR PATTERN File: 16.129.00
VSAPI OPR PATTERN Date: 28 Jul 2020

Step 1

Trend Micro Predictive Machine Learning detects and blocks malware at the first sign of its existence, before it executes on your system. When enabled, your Trend Micro product detects this malware under the following machine learning name:


    • Troj.Win32.TRX.XXPE50FFF036

Step 2

Before doing any scans, Windows 7, Windows 8, Windows 8.1, and Windows 10 users must disable System Restore to allow full scanning of their computers.

Step 3

Note that not all files, folders, and registry keys and entries are installed on your computer during this malware's/spyware's/grayware's execution. This may be due to incomplete installation or other operating system conditions. If you do not find the same files/folders/registry information, please proceed to the next step.

Step 4

Restore these deleted registry keys/values from backup

*Note: Only Microsoft-related keys/values will be restored. If the malware/grayware also deleted registry keys/values related to programs that are not from Microsoft, please reinstall those programs on your computer.

  • In HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
    • ProxyBypass = {User Preference}
  • In HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
    • IntranetName = {User Preference}

Step 5

Restore this modified registry value

[ Learn More ]

Important: Editing the Windows Registry incorrectly can lead to irreversible system malfunction. Please do this step only if you know how or you can ask assistance from your system administrator. Else, check this Microsoft article first before modifying your computer's registry.

  • In HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
    • From: UNCAsIntranet = 0
      To: UNCAsIntranet = {User Preference}
  • In HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap
    • From: AutoDetect = 1
      To: AutoDetect = {User Preference}

Step 6

Search and delete this file

[ Learn More ]
There may be some files that are hidden. Please make sure you check the Search Hidden Files and Folders checkbox in the "More advanced options" option to include all hidden files and folders in the search result.
  • %Temp%\lck.log
  • {Encrypted Directory}\{Encrypted FileName w/ extension}.{Target Company Name}wasted_info

Step 7

Scan your computer with your Trend Micro product to delete files detected as Ransom.Win32.WASTEDLOCKER.THGBGBO. If the detected files have already been cleaned, deleted, or quarantined by your Trend Micro product, no further step is required. You may opt to simply delete the quarantined files. Please check the following Trend Micro Support pages for more information:

Step 8

Restore encrypted files from backup.
